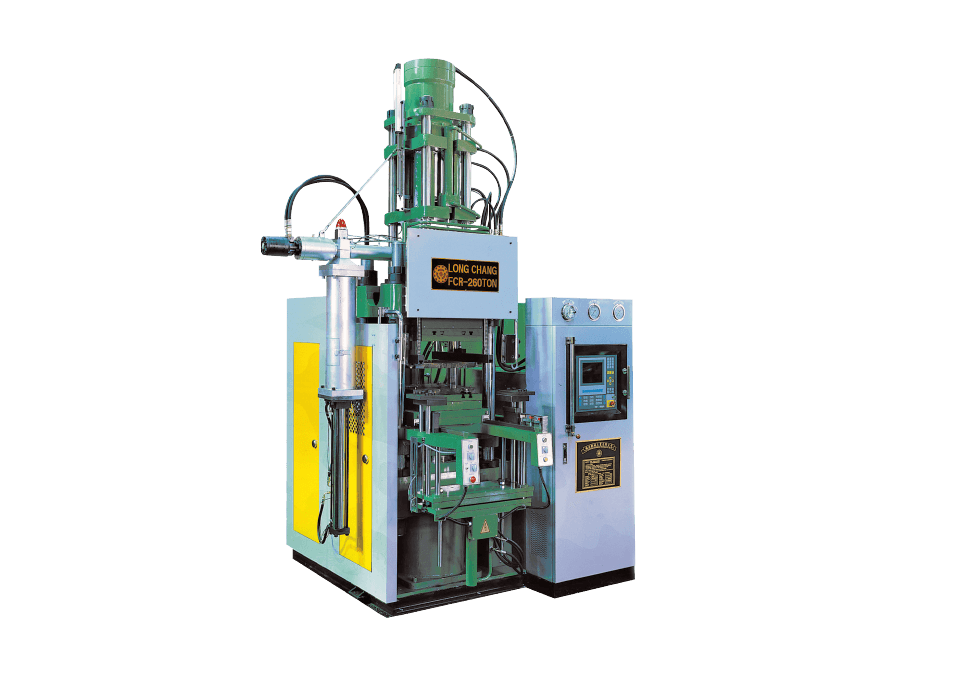

Silicone Injection Molding Machine

FCRS SERIES

Silicone Injection Molding Machine

APPLICATIONS:

For solid silicone material products only. Automobile spark plug soft tubing, medical treatment equipment parts, drinking water machine parts and other silicone products.

SPECIFICATIONS

SPEC TYPE FCRS-150 FCRS-200 FCRS-260 FCRS-300 FCR-450 FCRS-500
MAX SHOT VOLUME C.C. 50-1000 10-1500 50-2000 50-3000 50-4000 50-5000
INJECTION PRESSURE KG/CM2 1900 1900 1900 1900 1800 1800
HYDRAULIC PRESSURE KG/CM2 210 210 210 210 210 210
SCREW DIAMETER MM 35 45 45 45 45 50
SCREW SPEED PRM 30-120 30-120 30-120 30-120 30-120 30-120
CLAMPING FORCE TON 150 200 260 300 450 500
OPENING STROKE KW 400 500 500 540 600 700
DAYLIGHT MM 600 650 650 740 800 900
PLATE SIZE MM 500x500 500x600 500x600 600x650 650x700 760x870
MOTOR HP 10
 15
 20
 25 30 50
HEATING CAPACITY KW 8 10 10 12 14 16
HEATING TRANSFER HP 1/2x2 1/2x2 1/2x2 1/2x2 1/2x2 1/2x2
SYSTEM PRESSURE HP 210 210 210 210 210 210
TANK CAPACITY GAL 150 150 150 200 250 250
  L 1950 2000 2000 2200 2300 2500
MACHINE DIMENSIONS W 2050 2350 2350 2400 2530 2750
  H 3450 3600 3600 3500 4730 4950
MACHINE WEIGHT KG 5500 6800 7300 10500 12000 16000
WRAPPING WEIGHT APPROX KG 5800 7100 7800 11000 13200 16500
