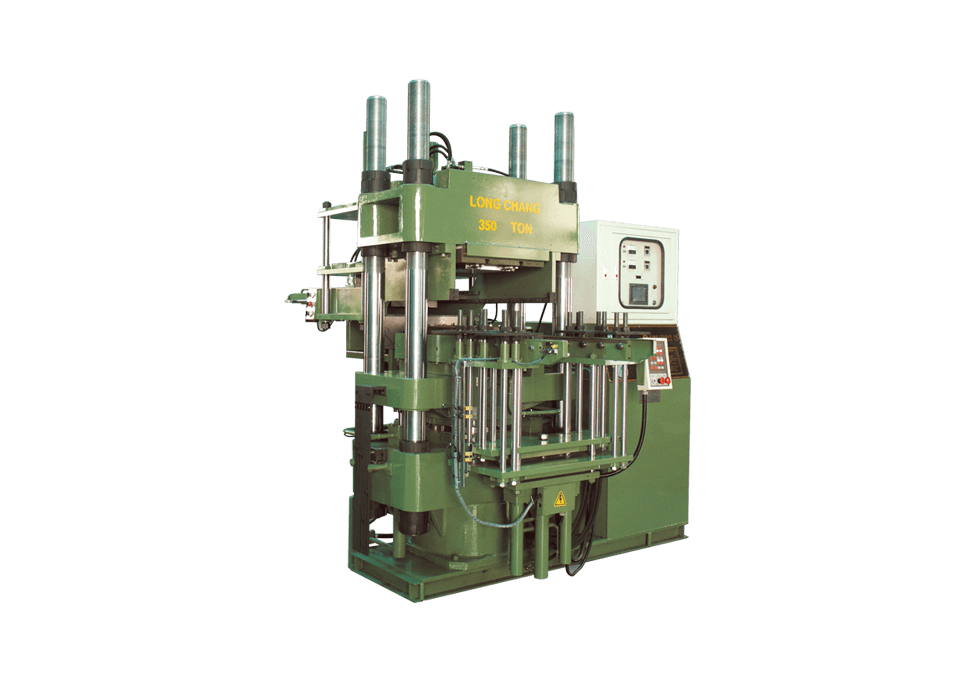

Transfer Compression Molding Machine

FCSR Series

Transfer Compression Molding Machine

APPLICATIONS:

Small rubber silicon products, rubber capacitor, golf ball.


SPECIFICATIONS

SPEC TYPE    FCSR-250 FCSR-350
CLAMPING FORCE TON 250 350
PLATE SIZE MM 500x500 600x600
STROKE MM 400 400
DAYLIGHT MM 550 550
OIL TANK CAPACITY GAL 150 150
PUMP PRESSURE KGF/CM2 210 210
MOTOR HP 10 15
HEATER CAPACITY KW 6 10
  L 2250 2350
MACHINE DIMENSIONS W 250 3350
  H 2600 2700
MACHINE WEIGHT KG 8000 9500
