FC-D Series

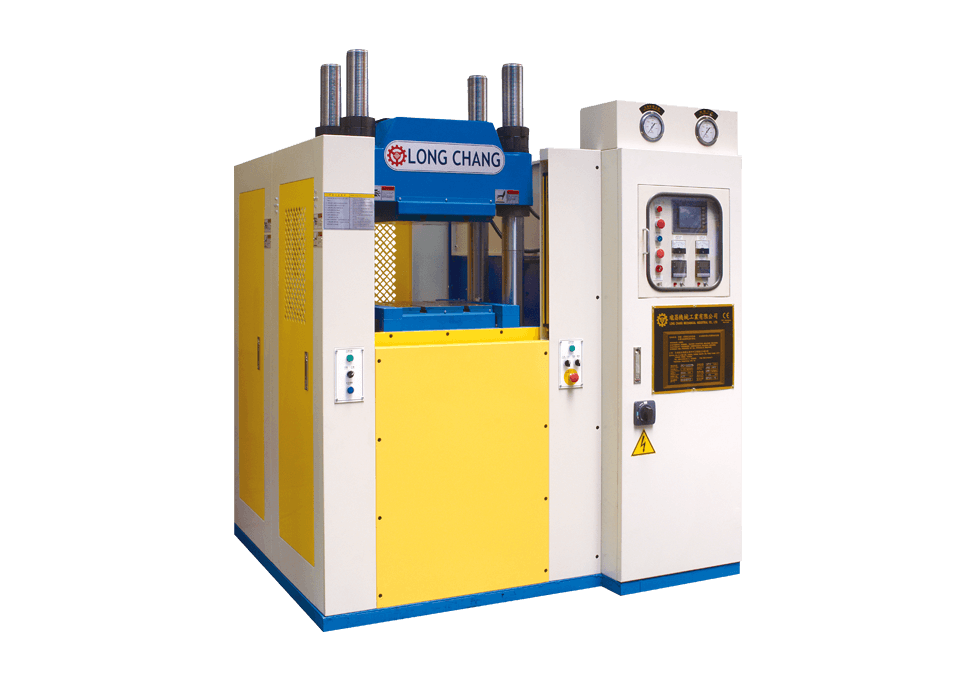

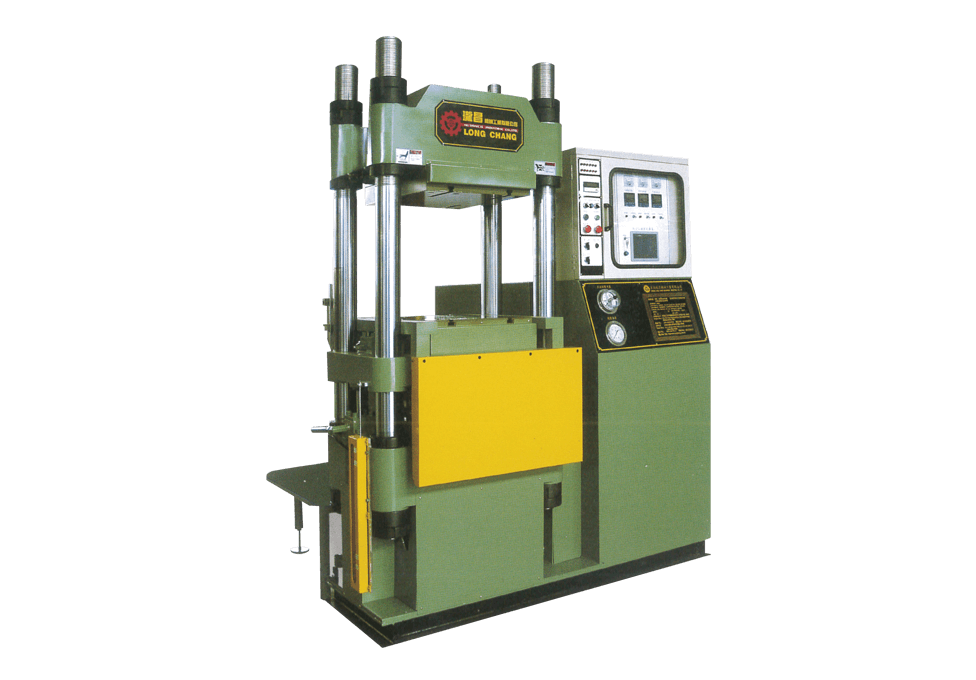

Single Body Oil Hydraulic Compression Molding Machine of Break Pad

APPLICATIONS:

For automobile, motorcycle , truck, train any kind of butterfly and drum type of friction break lining products.

SPECIFICATIONS

FC-D TYPE    FC-D-100 FC-D-250 FC-D-300 FC-D-400
CLAMPING FORCE TON 100 250 300 400
PLATE SIZE MM 500x650 540x630 540x630 610x630
STROKE MM 400 450 400 400
DAYLIGHT MM 500 500 500 500
OIL TANK CAPACITY GAL 75 150 150 150
PUMP PRESSURE KG/cm2 210 210 210 210
MOTOR HP 5 10 10 15
HEATER CAPCCITY MM 20 24 24 24
MACHINE SIZE LxWxH MM 1780x1250x2500 2150x1750x2700 2200x1750x2400 2430x1750x2400
MACHINE WEIGHT KG 4000 6200 6800 8200
