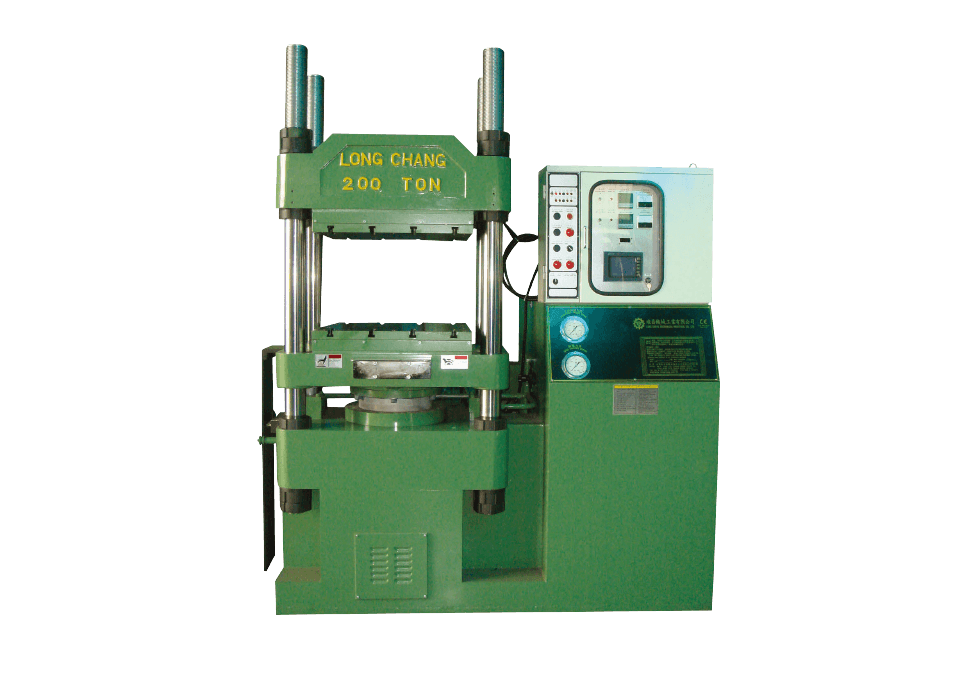

Single Body Oil Hydraulic Compression Molding Machine

FC SERIES

Single Body Oil Hydraulic Compression Molding Machine

APPLICATIONS:

Melamine dinner sets, urea, bakelite, fiber and heated compression material products.

Single Body Oil Hydraulic Compression Molding Machine

SPECIFICATIONS

SPEC TYPE    FC-37 FC-50 FC-60 FC-70 FC-80 FC-100 FC-150 FC-200 FC-300
CLAMPINGFORCE TON 37 50 60 70 80 100 150 200 300
PLATESIZE MM 330x355 355x380 400x405 405x455 475x480 530x605 660x710 720x720 860x915
STROKE MM 300 300 330 360 410 460 480 500 500
DAYLIGHT MM 530 580 600 610 630 750 800 820 850
OILTANKCAPACITY GAL 50 60 60 70 70 100 100 120 200
PUMPPRESSURE KGF/CM2 210 210 210 210 210 210 210 210 210
MOTOR HP 3 3 3 5 5 5 5 71/2 15
HEATERCAPACITY KW 31/2 4 5 5 6 8 10 12 20
  L 1410 1510 1540 1600 1650 1780 1950 2180 2400
MACHINEDIMENSIONS MMW 1100 1100 1170 1400 1450 1450 1500 1600 1700
  H 1850 1910 2200 2100 210 2480 2500 3120 3200
MACHINEWEIGHT KG 1250 1550 2000 2400 3200 3800 4500 6500 9600
WRAPPINGWEIGHTAPPROX KG 1550 1850 2400 2800 3600 4300 5000 7200 10200
